JBS RESICAP

Product Description

JBS RESICAP is a high-performance, fast-setting resin capsule designed for rock bolting in mining and tunneling operations. It contains a special grade of isophthalic polyester resin and a catalyst, housed together in a single transparent pouch but isolated to prevent premature reactions. Once activated, it creates a tough thermoset resin matrix, providing exceptional anchoring and stabilization of rock strata.

Uses

• Reinforces rock strata and prevents collapse in mining and tunneling.
• Stabilizes freshly exposed overhead rock after blasting.
• Suitable for underground coal mining, hydropower projects, and traffic tunnels.

Features

• Fast Setting: Gel point achieved within 1–3 minutes under exothermic conditions.
• High Strength: Achieves a pull-out load of up to 20 MT.
• Versatile: Effective in a wide range of rocks, even with low RMR (Rock Mass Rating).
• Durable: Resistant to saltwater, oil, acids, alkalis, greases, and solvents.
• Environmentally Safe: Inert after curing and safe for use in sensitive environments.
• Moisture Resistant: Sets as a monolithic mass in vibrating or moist conditions.

Application Method

1. Prepare the Borehole: Drill to the recommended depth and diameter. Clean thoroughly with compressed air or water.
2. Insert Capsules: Place the required number of resin capsules one by one into the borehole.
3. Torque the Bolt: Attach the bolt to a rotary machine and commence rotating at 150–250 rpm to puncture and mix the resin and catalyst.
4. Cure and Tighten: Leave the bolt undisturbed until curing is complete. After 24 hours, tighten the rock bolts for final grouting.

Technical Data

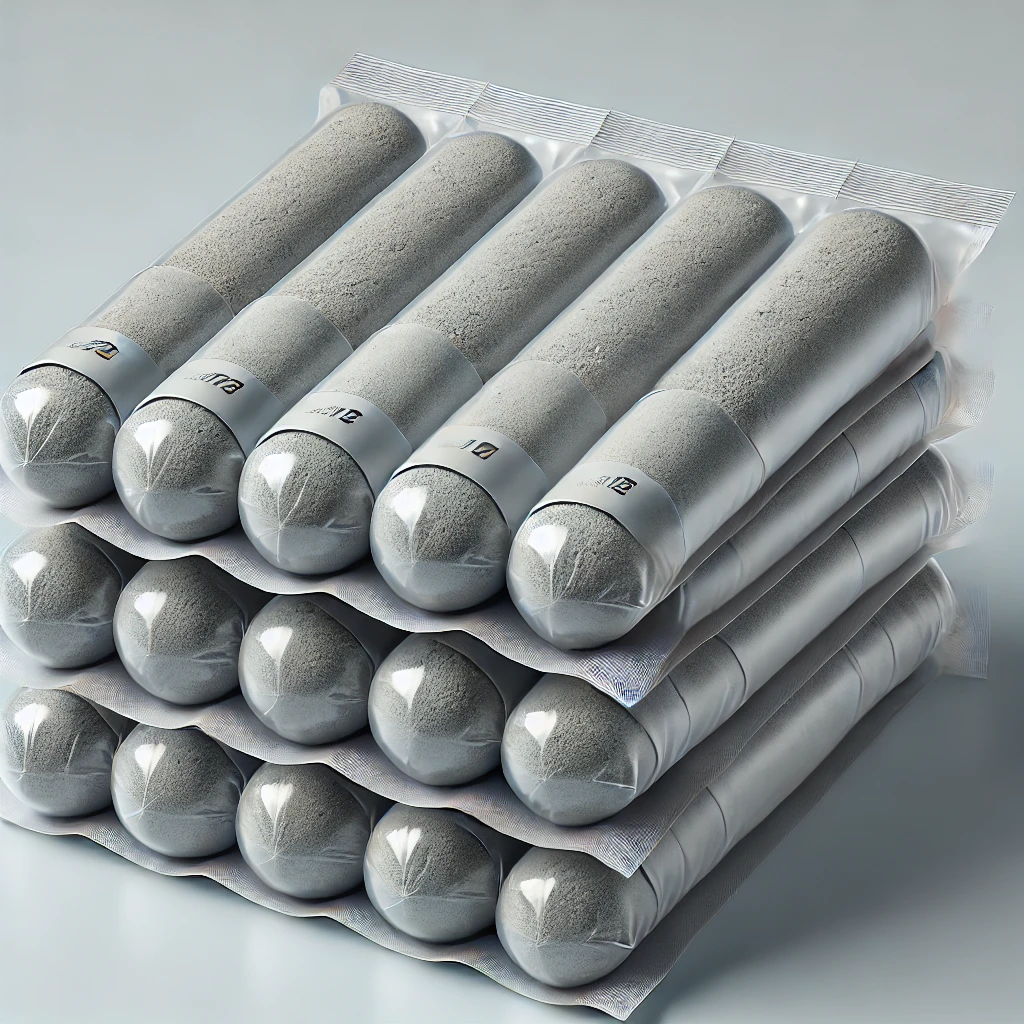

• Physical Appearance: Yellow/White cylindrical sausage-shaped capsules.
• Compressive Strength:
  • After 1 hour: 62 N/mm² (minimum)
  • After 24 hours: 65 N/mm² (minimum)
• Tensile Strength:
  • At 7 days: 30 N/mm² (minimum)

Standard Sizes

• 25 mm dia x 300 mm length
• 32 mm dia x 300 mm length
• 40 mm dia x 300 mm length

Packaging

• 25 capsules per polythene bag, 2 bags packed in corrugated carton boxes.

Shelf Life

• 6 months from the date of manufacture when stored in dry conditions.

Precautions and Limitations

• Protect the capsules from sharp objects and prevent piercing of the inner glass tube.
• Not recommended for use where structural performance is required under fire conditions.
• Seek JBS technical support for use in temperatures below 5°C.

Standard Compliances

• Complies with BS 8110 standards.
